Inference Module & CWL Runner

In the training module, a CNN model was trained on the EuroSAT dataset to classify image chips into 10 different land use/land cover classes. The training workflow was tracked using MLflow.

This Application Package provides a CWL document that performs inference by applying the trained model to unseen Sentinel-2 data in order to generate a classified image. The CWL document contains a single main workflow that executes one CommandLineTool step. It also supports parallel execution by accepting a list of Sentinel-2 references as input, making it suitable for running at scale on a Minikube cluster.

To execute the application, users have the option to use either cwltool or Calrissian as the CWL runner.

Inputs:

  • input_reference: A list of Sentinel-2 product references from Planetary Computer. Note: the inference application provides accurate results only when the Sentinel-2 product has low or no cloud cover. High cloud coverage may significantly reduce prediction accuracy.

How to Execute the Application Package

Before running the application with a CWL runner, make sure to download and use the latest version of the CWL document:

cd inference/app-package
VERSION=$(curl -s https://api.github.com/repos/eoap/machine-learning-process/releases/latest | jq -r '.tag_name')
curl -L -o "tile-sat-inference.cwl" \
  "https://github.com/eoap/machine-learning-process/releases/download/${VERSION}/tile-sat-inference.${VERSION}.cwl"

Run the Application Package:

There are two methods to execute the application:

  • Executing tile-sat-inference using cwltool:

    cwltool --podman --debug --parallel tile-sat-inference.cwl#tile-sat-inference params.yml

  • Executing tile-sat-inference using calrissian:

    calrissian --debug --stdout /calrissian/out.json --stderr /calrissian/stderr.log --usage-report /calrissian/report.json --max-ram 10G --max-cores 2 --parallel --tmp-outdir-prefix /calrissian/tmp/ --outdir /calrissian/results/ --tool-logs-basepath /calrissian/logs tile-sat-inference.cwl#tile-sat-inference params.yml


    You can monitor the pod creation using command below:

    kubectl get pods

How the CWL document is designed:

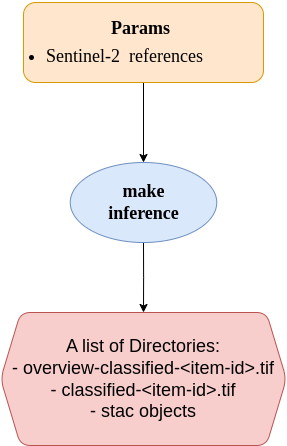

The CWL file can be triggered using cwltool or calrissian. The execution requires a params.yml file, which supplies all the necessary inputs defined in the CWL specification. The workflow is structured to run the module according to the diagram outlined below:


The Application Package will generate a number of directories containing intermediate and final outputs. Each directory will contain a {STAC_ITEM_ID}_classified.tif file, along with the corresponding STAC objects (i.e. the STAC Catalog and STAC Item). The number of directories depends on the number of input Sentinel-2 products provided.

Troubleshooting

Users might encounter memory-related issues when executing workflows with CWL Runners (especially with cwltool). These issues can often be mitigated by reducing the ramMax parameter (e.g. ramMax: 1000) specified in the CWL file, which can help prevent excessive memory allocation.
