Training Module & CWL Runner
This Application Package provides a CWL document containing a top-level workflow with a single CommandLineTool
step that executes the training pipeline. It also supports parallel execution, allowing users to specify multiple sets of hyperparameter or training configurations. This makes it suitable for large-scale experiments and hyperparameter tuning on platforms like a Minikube cluster.
To execute the training workflow, users can choose between cwltool and Calrissian as their CWL runners.
Inputs:
Parameter | Type | Description |
---|---|---|
MLFLOW_TRACKING_URI | string | An environment variable for the MLFLOW_TRACKING_URI |
stac_reference | string | URL pointing to a STAC catalog. The model reads GeoParquet annotations from the collection's assets. |
BATCH_SIZE | int[] | Number of batches |
CLASSES | int | Number of land cover classes to classify. |
DECAY | float[] | Decay value used in training. |
EPOCHS | int[] | Number of epochs |
EPSILON | float[] | Epsilon value (model hyperparameter) |
LEARNING_RATE | float[] | Initial learning rate for the optimizer. |
LOSS | string[] | Loss function for training. Options: binary_crossentropy , cosine_similarity , mean_absolute_error , mean_squared_logarithmic_error , squared_hinge . |
MEMENTUM | float[] | Momentum parameter used in optimizers |
OPTIMIZER | string[] | Optimization algorithm. Options: Adam , SGD , RMSprop . |
REGULARIZER | string[] | Regularization technique to avoid overfitting. Options: l1l2 , l1 , l2 , None . |
SAMPLES_PER_CLASS | int | Number of samples to use for training per class. |
How to execute the Application Ppackage?
Before running the application with a CWL runner, make sure to download and use the latest version of the CWL document:
cd training/app-package
VERSION=$(curl -s https://api.github.com/repos/eoap/machine-learning-process/releases/latest | jq -r '.tag_name')
curl -L -o "tile-sat-training.cwl" \
"https://github.com/eoap/machine-learning-process/releases/download/${VERSION}/tile-sat-training.${VERSION}.cwl"
Run the Application Package:
There are two methods to execute the application:
-
Executing the tile-based-training using
cwltool
in a terminal:cwltool --podman --debug --parallel tile-sat-training.cwl#tile-sat-training params.yaml
-
Executing the tile-based classification using
calrissian
in a terminal:
calrissian --debug --stdout /calrissian/out.json --stderr /calrissian/stderr.log --usage-report /calrissian/report.json --parallel --max-ram 10G --max-cores 2 --tmp-outdir-prefix /calrissian/tmp/ --outdir /calrissian/results/ --tool-logs-basepath /calrissian/logs tile-sat-training.cwl#tile-sat-training params.yaml
You can monitor the pod creation using
kubectl
command below:
kubectl get pods
How the CWL document is designed:
The CWL workflow can be executed using either cwltool
or calrissian
. The execution requires a params.yml

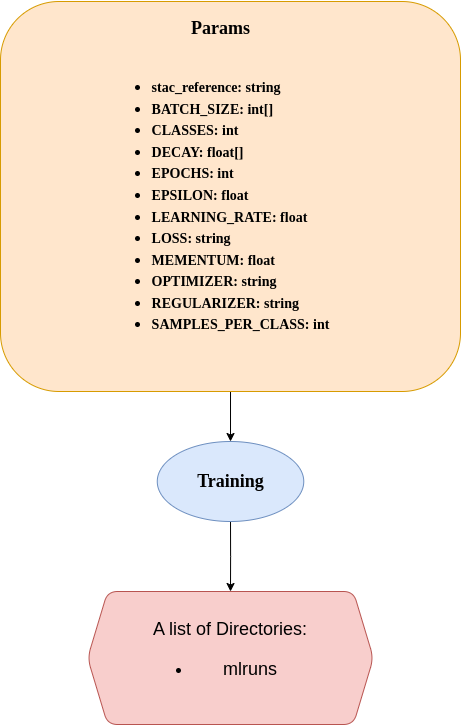

file, which supplies all the necessary inputs defined in the CWL specification. The workflow is structured to run the module according to the diagram outlined below:
[]
in the image above indicates that the user may pass a list of parameters to the application package.
For developers
Users can train multiple tile-based classifiers using the CWL runner, with model weights tracked as artifacts in MLflow. Once training is complete, the next step is to retrieve the best-performing model, based on the chosen evaluation metric, from the MLflow artifact registry and convert it to ONNX format. This process is detailed in the "Export the Best Model to ONNX Format" guide. The resulting ONNX model can then be integrated into the inference application package.
Troubleshooting
Users might encounter memory-related issues when executing workflows with CWL Runners (especially with cwltool
). These issues can often be mitigated by reducing the ramMax
parameter (e.g. ramMax: 1000
) specified in the CWL file, which can help prevent excessive memory allocation.
